ADVANCED NETWORK TOPOLOGY

The Mesh Architecture.

Forget classic repeaters that halve your bandwidth. Discover how Captivux’s self-healing mesh topology guarantees perfect seamless roaming across thousands of square meters.

Mesh Flow Animation

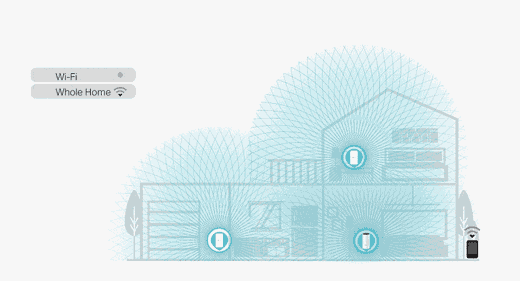

Mesh Network Data Flow
DATA_LINK_ACTIVE

Fig 1.1 — Nodes communicate intelligently to find the fastest path to the network core (gateway).

Seamless Roaming (802.11r)

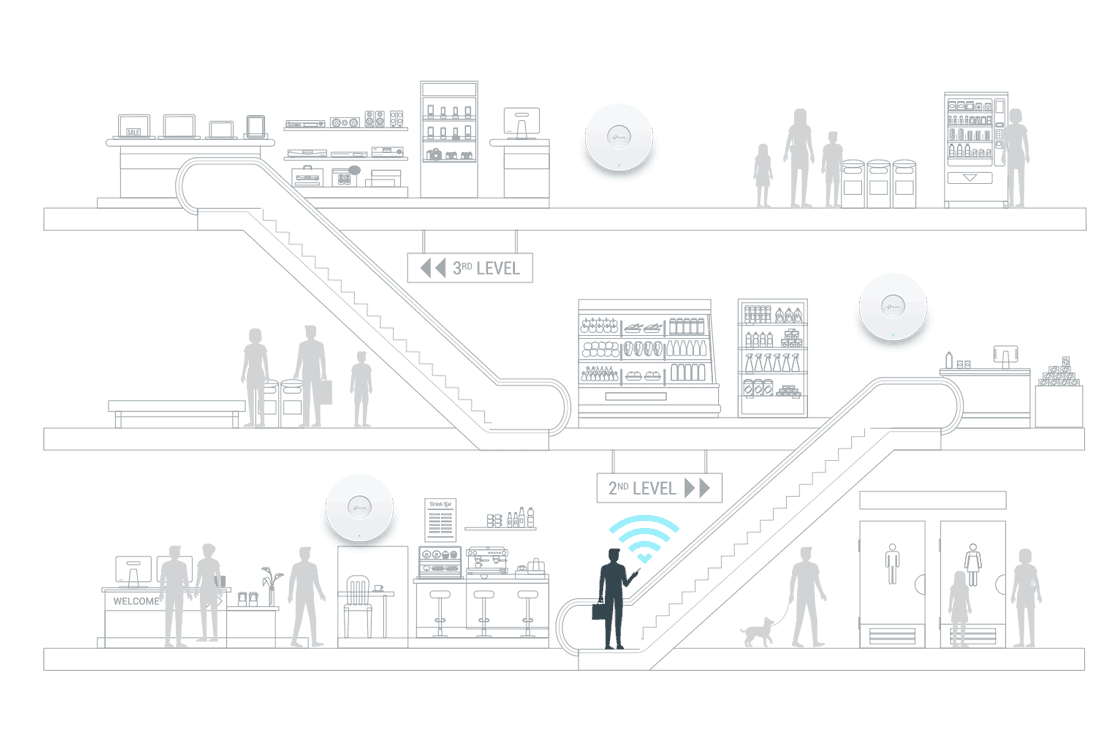

Seamless Roaming Animation
CLIENT_HANDOVER: 12ms

Fig 1.2 — The mobile client (smartphone/laptop) hops from one AP to another with no network, VoIP or video drop (instant handover).

LEGACY VS MODERN

Why “repeaters” are obsolete.

> The Old Model (Extenders)A repeater picks up the Wi-Fi signal and rebroadcasts it. But since it has only one radio, it spends half its time listening and the other half talking. Result: bandwidth is halved at every hop. It also often creates a second network (“MyWiFi_EXT”), forcing the user to reconnect manually.
> The Mesh ModelThe Captivux mesh system uses a Dedicated Backhaul (a 5 GHz or 6 GHz radio band reserved solely for AP-to-AP communication). Result: bandwidth stays at 100%. The network broadcasts a single name (SSID) end to end.

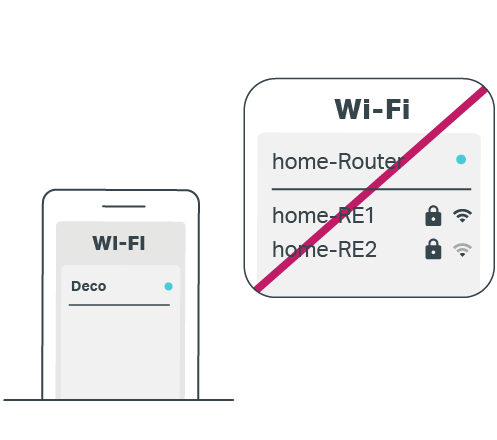

Extender vs Mesh Comparison
FIG_2.1_COMPARISON

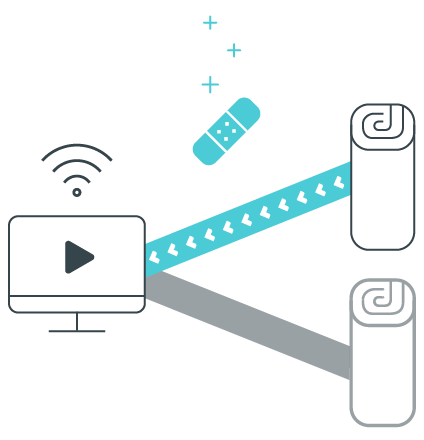

Self-Healing Mesh Topology
FIG_2.2_SELF_HEALING
MILITARY-GRADE RESILIENCE

Self-Healing Topology.

In a classic star architecture, if the central switch fails, the whole network dies. With the Captivux mesh protocol, every access point (node) communicates with all its neighbors.

  • If an AP (Node B) loses power, the adjacent nodes (Node A and C) automatically recompute the optimal route (adaptive routing) to forward IP packets with no human intervention.
  • This process takes less than 50 milliseconds. Connected users won’t even notice the hardware failure.
MASSIVE B2B DEPLOYMENT

Extreme Density & Smart Coverage.

Designed for stadiums, university campuses and luxury hotels. A Captivux mesh network can aggregate up to 10,000 access points under a single logical infrastructure, managed from one control panel (single pane of glass).

Band Steering
Automatically pushes compatible devices to the 5 GHz/6 GHz band to relieve congestion on 2.4 GHz.
Airtime Fairness
Prevents old devices (Wi-Fi 4) from slowing the whole network by limiting their airtime.
Topologie filaire du réseau mesh (backhaul Ethernet)
FIG_3.1_TOPOLOGY
Backhaul dédié entre bornes mesh
FIG_3.2_BACKHAUL

Move to Mesh Architecture.

Our engineers help you design your network topology to guarantee 100% coverage (RF site survey).
