EAP683 UR

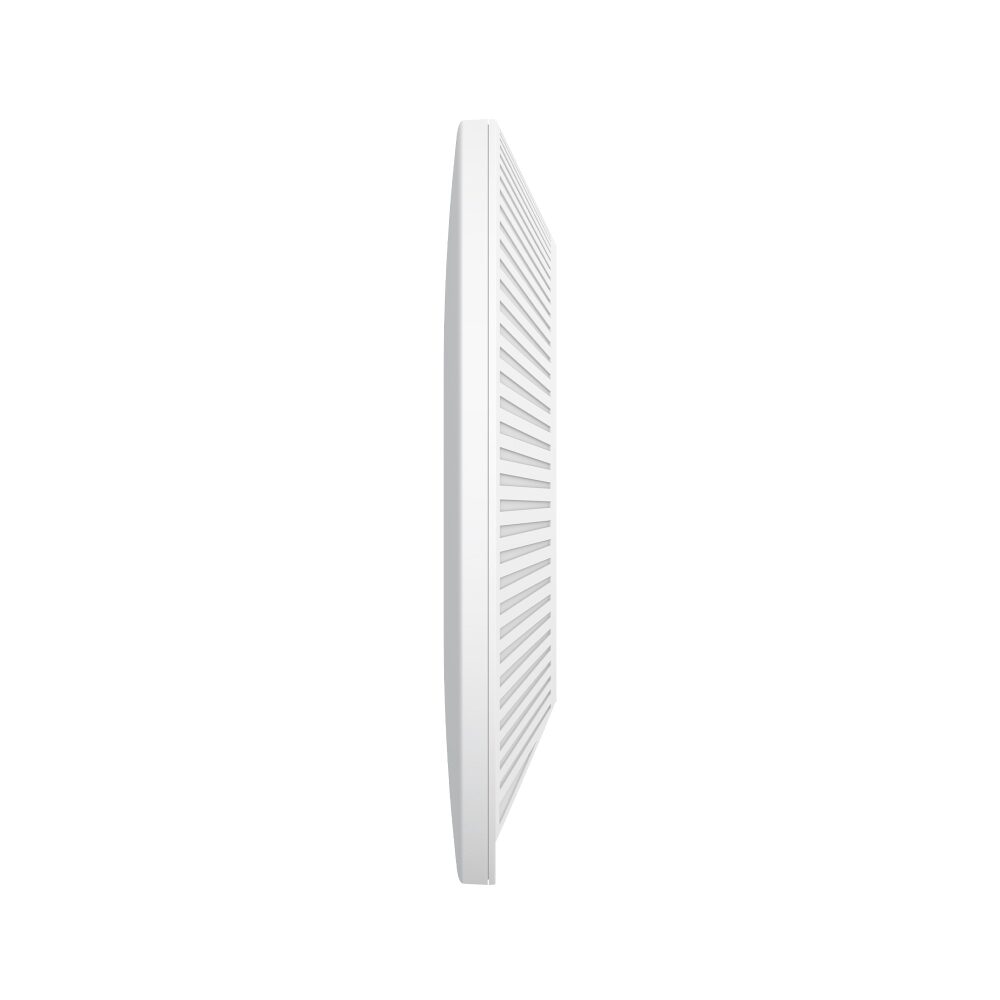

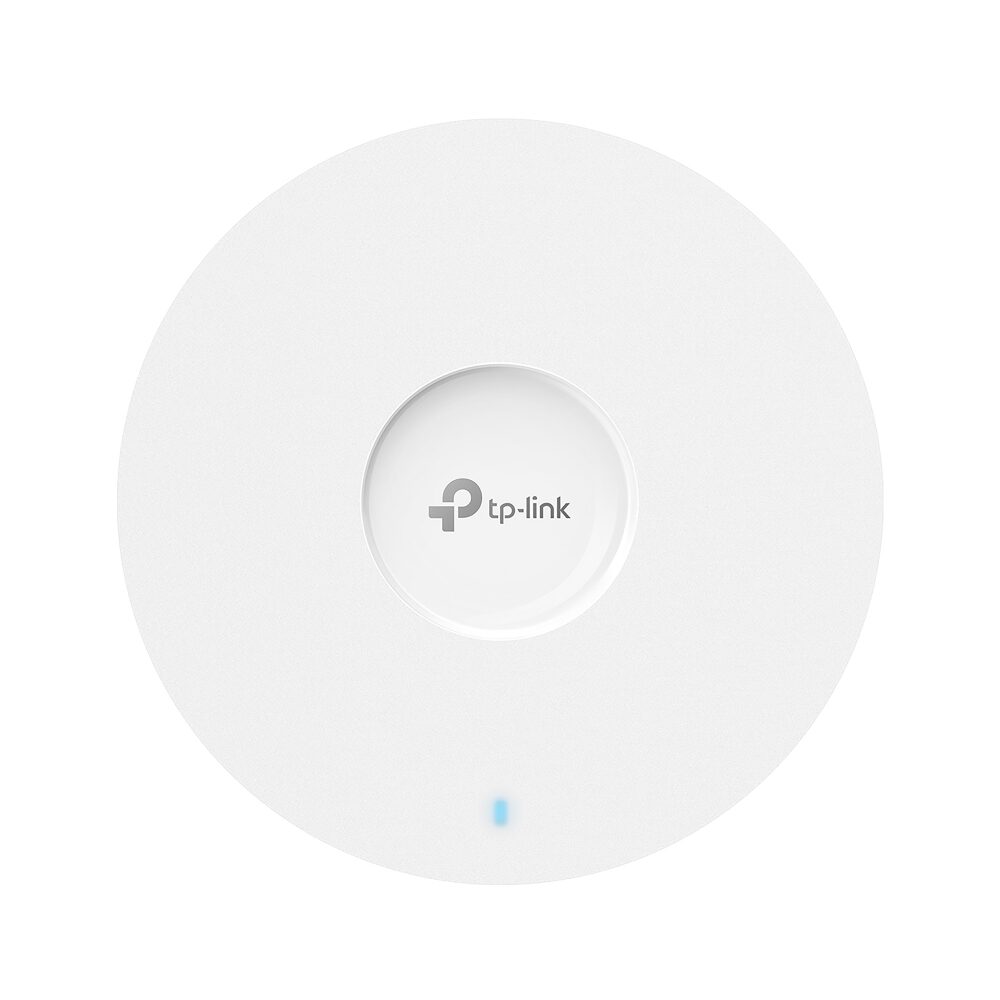

The EAP683 UR is TP-Link Omada's AX6000 Wi-Fi 6 AP: OFDMA and MU-MIMO serve dozens of simultaneous guests without collapse. Ceiling or wall mounted, powered over a single PoE cable, it connects back over RJ45 5G and pairs natively with the Captivux captive portal and RADIUS platform.
See the hardware. Understand the network.
Verified EAP683 UR media, its Omada SDN context and the radio technologies that matter in a real deployment.
Ecosystem film
Omada SDN, from signal to insight.
Technology detail
The technologies inside this device.
Select a technology to understand its real impact on density, latency and connection quality.
RADIO LAB / TP-LINK OMADA
Wi-Fi 6 (802.11ax)
The Captivux-recommended standard: OFDMA, 1024-QAM and 8×8 MU-MIMO. Designed for density (cafés, hotels, retail), not just raw throughput.
Wi-Fi 5 → 6 → 6E → 7
This model's Wi-Fi 6 generation is highlighted.
| Generation | Standard | Bands | Channel | Max speed | Key tech |
|---|---|---|---|---|---|
| Wi-Fi 5 | 802.11ac | 5 GHz | 80 MHz | 3.5 Gbps | SU-MIMO |
| Wi-Fi 6THIS MODEL | 802.11ax | 2.4 / 5 GHz | 160 MHz | 9.6 Gbps | OFDMA · MU-MIMO |
| Wi-Fi 6E | 802.11ax | 2.4 / 5 / 6 GHz | 160 MHz | 9.6 Gbps | 6 GHz band |
| Wi-Fi 7 | 802.11be | 2.4 / 5 / 6 GHz | 320 MHz | 46 Gbps | MLO · 4K-QAM |
